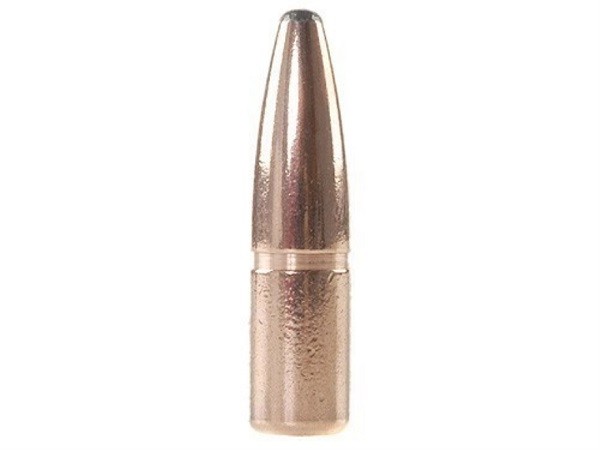

With its unique cross-member copper jacket design and a bonded front core, the A-Frame has become famous for its ability to combine 3 performance features – controlled expansion, deep penetration and 95% weight retention at all velocities. From tip to base, the A-Frame features a soft, semi-spitzer lead nose protects it against felt recoil while in the magazine. Next, the pure copper jacket begins to taper around the pure lead core at the tip of the bullet in an effort to help control the expansion rate at a wide range of velocities. The core towards the base of the bullet is where the momentum for the deep penetration comes from. The wrap-around jacket on the base of the bullet helps retain the bullet’s original weight and prevent deformation.
This is not loaded ammunition.
A-Frame Features:
- The Semi-Spitzer nose profile is designed to withstand recoil impact in magazines without deforming
- Progressively tapered jacket controls the rate of expansion over a wide range of velocities
- Pure Lead core bonded to jacket with Swift’s proprietary process
- Jacket formed from pure copper
- A-Frame Cross member is positioned to optimize expansion diameter
- The protected rear core provided momentum for deep penetration
- Thick Jacket locks in the rear core, preventing deformation and retaining weight.
Technical Information:
- Caliber: .30 Caliber
- Bullet Diameter: 0.308″
- Bullet Weight: 200 Grains
- Bullet Length: 1.315″
- Bullet Style:Â Bonded Swift A-Frame- Jacketed Semi-Spitzer
- Bullet Coating: Non-coated
Ballistics Information:Â
- Sectional Density: .201
- G1 BC: 0.444
| Weight | 1.625 lbs |
|---|---|
| Bullet Caliber | 30 Caliber (.308) |
| Bullet Condition | |
| Bullet Type | Soft Point |
| Bullet Weight | 200 Grains |
| Manufacturer | Swift Bullet Company |
